Quick Details

  • Condition: New
  • Type: Vertical
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: GOODCNC
  • Model Number: VMC850B
  • Voltage: 380V 50HZ
  • Power(W): 7.5KW
  • Dimension(L*W*H): 2750*2300*2300mm
  • Weight: 5500KG
  • Certification: ISO9001
  • Warranty: 12 months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • product type: VMC machine
  • Main spindle: Taiwan BT40 8000rpm sevro motor
  • Guideway: Three hard guideway
  • Ball screw: PMI/HIWIN
  • Screw bearing: FAG/NSK
  • Fast feed: X/Y axis 18m/min Z axis 15m/min
  • Work table: 1050*500mm
  • X/Y/Z axis travel: 800*500*550
  • Tool charge: Taiwan 16 Hats type tool charge
  • Control system: siemens, fanuc, mitsubishi

Packaging & Delivery

Packaging Details: 1. package size : 2750x2300x2300mm
2. machine be put in a closed wooden case and then loaded on iron tray
Delivery Detail: 40 days after receiving deposit

 High precision  vmc-850 vmc machine price

Product Description

cnc machining center vmc-850

1.Rectangular hardened sliding ways are applied in X-axis, Y-axis and Z-axis.

2.The machine has high rigidity, high accuracy, high speed, high efficiency, high reliability, large torque and wide machining range.

3.This series machines are designed for milling, drilling, reaming, boring, tapping, and counter boring/sinking valve type workpieces, cams, moulds/dies, chuck type workpieces, and case type workpieces used in automobile industry, motor cycle industry, machinery manufacturing, sewing machine industry, motor industry, and instrument industry, especially those in complex shapes like 2-dimension or 3-dimension concave/convex moulds and cavities.

4.The machine is either suitable for multi-product small/medium patch production or mass production when fitted to a production line.

5.Use of the said machines can save technical equipment, shorten production preparation time, ensure product quality and improve productivity.



Machine show





Main Specification



NO.

ITEM

Specification

1

Table size L(mm)×W(mm)

1050×500

2

T slot QTY /width/interval  distance(mm)

3-18-120

3

Maximum load(KG)

600

4

X travel (mm)

800

5

Y travel (mm)

500

6

Z travel (mm)

550

7

Spindle nose to table  (mm)

105-655

8

Spindle center to column (mm)

550

9

Spindle taper

BT40

10

Max. spindle speed  (Rpm)

8000

11

Main motor (kW)

11

12



Feed motor



X torque(N.M)

15

Y torque(N.M)

15

Ztorque(N.M)

15

Max. install size

7.5

13

Rapid moving speed (m/min.)

20/20/20

14

Cutting speed (mm/min)

1-10000

15

Ball screw (diametermm/pitch )mm

32/10

17

Accuracy



Positioning accuracy  (mm)

0.008

Repeatability accuracy  (mm)

0.003

18

Tool changer

Funnel type (optional )  BT40

            16 or 24

19

Air pressure Mpa

0.6

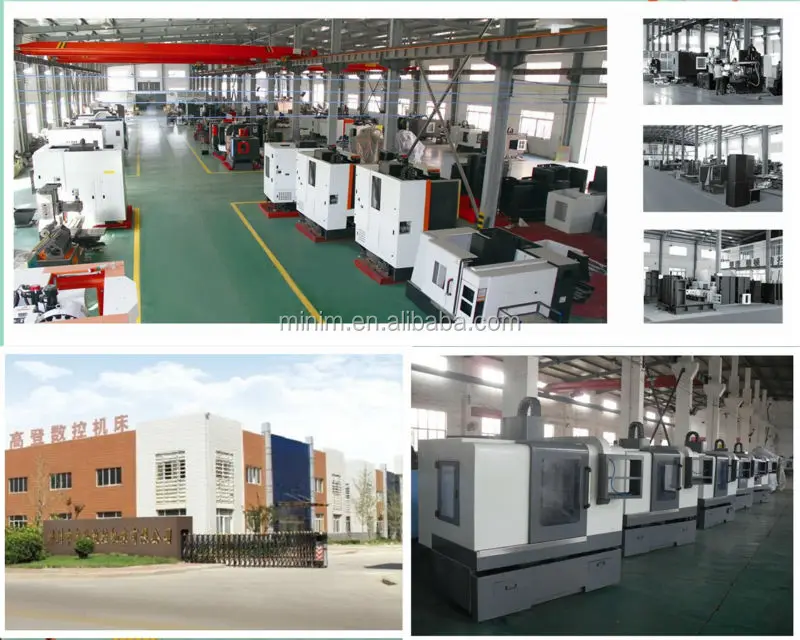

Company Information


Packaging & Shipping

Packing:Veneer case in Container.

Shipping:By Sea
